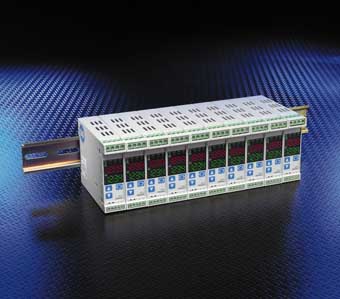

Shinko DCL Controller
Din Rail Mounting
SHINKO DCL Series
Rail Mount Fully Programable with Universal input.
  • Simultaneous display of SV and PV-choice of LED numerical display or LED array deviation indicator.
  • 110 or 220V AC, 12V or 24V DC power supply versions
  • Relay, SSR driver voltage pulse, 4-20mA, 1-5V DV, 0-1V DC, 0-10mV DC outputs.
  • Thermocouples (J, K) or RTD, 4-20mA, 1-5V DC inputs. Various Other inputs
  • Full PID Autotuning controller.
  • Easy push-button operation.
  • Upscale burn-out protection.
  • Programable for Heat / Cool Operation
Only a few variations left in this Series
ModelRangeIndicationSensorPriceAdd To Cart
DCL-33A-R/M 4 digit Full Scale Universal Input $105.00
PDF spec sheetPDF spec sheet
PDF spec sheetPDF spec sheet
DIN Rail Mounting Type Limit Controller
DIN Rail Limit Controller - Shinko DCL-33A Series, Shinko DCL-33A Series

Standard Features

  • Space Saving Size
    Easy to mount even in a small machine because the width is just 22.5mm, height 7.5mm and depth 100 mm.

DCL-33A

  • Limit Controller Function Specifications
    1 setpoint, high- or low-limit control type, and latching limit action
  • True Multi-Input
    Units feature full muti-input capability: 1 RTD Type, 10 thermocouple types, mA and V inputs
  • Programmable Alarm
    Units feature standard single alarm output
  • Safety Approvals
    UL, CUL and CE Approvals
  • Large LED Display
    PV Red 4 digits 7.5 x 4.1 mm (H x W)
    SV Green 4 digits 7.5 x 4.1 mm (H x W)
  • Modbus Protocol With RS485 (Option)
    Units offer communications capabilites

DCL-38A

  • Limit Controller Function Specifications
    1 setpoint, high- or low-limit control type, and latching limit action
  • True Multi-Input
    Units feature full muti-input capability: 1 RTD Type, 10 thermocouple types, mA and V inputs
  • Safety Approvals
    CE Marking
  • Large LED Display
    PV Red 4 digits 7.5 x 4.1 mm (H x W)
    SV Green 4 digits 7.5 x 4.1 mm (H x W)
  • Warranty
    All units manufactured to strict ISO standards and offer a full 3 year manufacturers warranty.


The DIN Rail Mounting Type Limit Controller features
a full 3 year warranty and lifetime technical support!

We design Themperature Control Systems and have for 30 years

. Chances are we've seen your application
Call us for Application Assistance.
