E-Shop : Drum Heaters : Insulated Tote Tank Heater

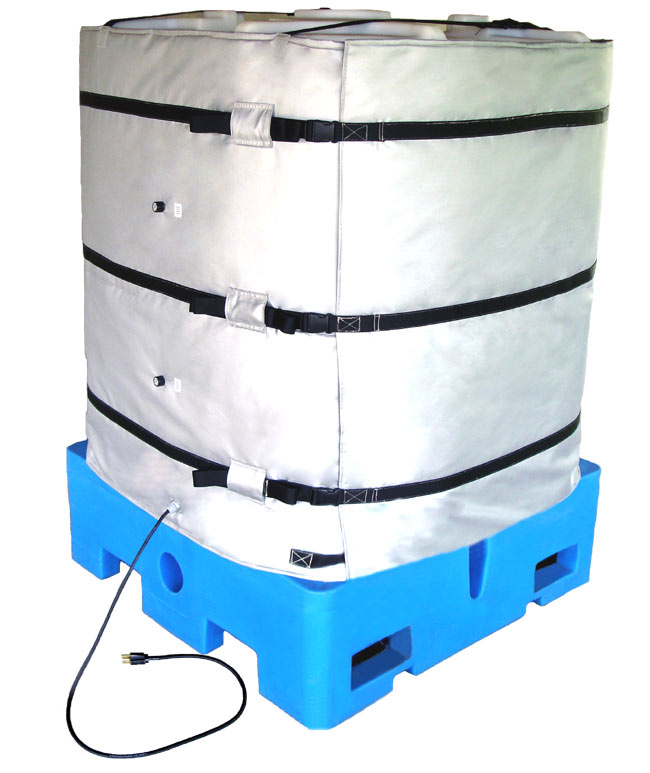

Tote Wrap-Around Heater Drum Heaters For Metal Drums

Specifications

  • Full coverage plug and play system
  • Fits any tote tank width from 40" x 40" (1016mm x 1016mm) to 48" x 48" (1219mm x 1219mm)
  • Three height sizes: 36" (914mm), 42" (1067mm), 48" (1220mm)
  • Two separate heat zones
  • Adjustable thermostat: 50 to 160°F (10 to 71°C)
  • Built-in manual reset high-limit safety thermostat set at 195°F (91°C) for each heat zone
  • Attachment method: adjustable nylon straps with buckles (Two across the top and three around the tank)
  • Silicone impregnated cloth facing and liner
  • 1/4" (6mm) fiberglass insulation
  • "Mouse-hole" designed for spigot
  • Patented ground for your safety
  • 120 / 240VAC
  • Total Wattage: 120VAC =1440 watts / 240VAC=2880 watts
  • Power cord 6 feet (1.8m) long with standard power plug
    • 120VAC = NEMA 5-15
    • 240VAC = NEMA 6-15
  • Optional insulated top cover [reduces heat loss]
Please refer to the Product Bulletin for more information.
For Instalation and Operating instructions refer to the
Instruction Manual
New Price
Catalog# Height Watts @
120 / 240		 Select Volts Weight Price $ Add To Cart
TOTE36X-ADJ 36 Inches 1440 / 2880
34 1639.00
TOTE42X-ADJ 42 Inches 1440 / 2880
40 1829.00
TOTE48X-ADJ 48 Inches 1440 / 2880
46 1979.00
Catalog# Description Weight Price $ Add To Cart
TOTE-TOP Insulated Cover for Standard Tote Tank Heaters 12 lBs $235.00

Raise Liquid Temperature Poly Totes with a safe, efficient electric heater.

The contents in your tote tanks / IBCs, such as honey, molasses, or lube oil, can be slow moving and uncooperative when you need it most, especially when winter strikes. Heat allows the content to flow at a manageable rate. The wrap-around blanket design allows you to heat a tote tank / IBC in a non-invasive way. Unlike immersion heaters, wrap-around surface heaters will not contaminate or scorch your product. An optional insulated top is offered for faster heat-up and more efficient temperature maintenance.

Max operating temperatures of 160ºF.


Heat Up Time for Drum Heaters (Enter Wattage used!)

 Note: ** Ambient Conditions assumed = start up temperatures!
Drum Size
Temp Rise Required
Liquid In TanK
Enter Wattage Applied
Heat-up Time Un-Insulated
Heat-up Time Insulated


Call us for Quantity Discounts.

We've seen your application. Call Us for application Assistance

(901) 452-4516
