Silicone Rubber Heaters

Silicone Rubber Heaters

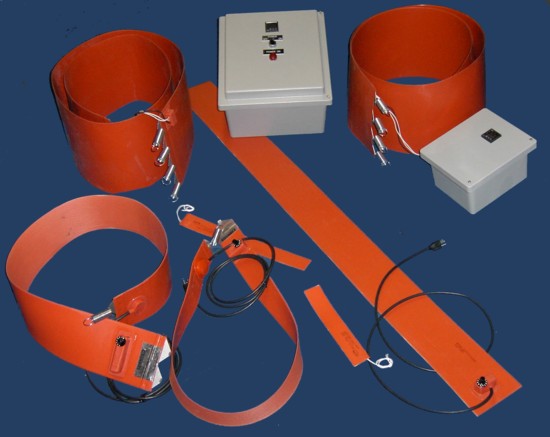

Silicone Rubber heaters: Designed for Tank Heating Applications. Systems use one of 3 methods of attaching Heaters to the exterior of tank.

  • Silicone heaters can be bonded directly to the tank with pressure sensitive adhesive (PSA) 450°.
  • Heaters are provided with eyelets to secure heaters with wire or tied around the tank.

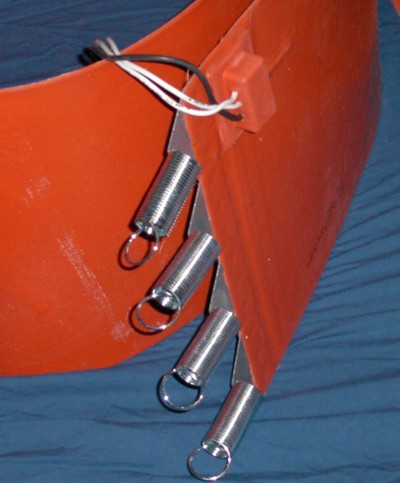

  • Heaters are Provided with Spring locking mechanism.

It is inexpensive and provides a highly reliable way of mounting a flexible heater to tanks. Silicone heaters are the easiest and most flexible way of Maintaining the temperature of process vessels.

Specification
Thickness: .018" and up to .070"
Temperature Range: -60F to +450F continuously
-80F to +500F intermittently
Resistant To: Moisture, Chemicals, Ozone, Fungus and Radiation
Max. Size: Up to 35" wide and unlimited length
Voltages: Up to 750 volts
Approvals: UL -- CSA -- FM
Non Hazardous Silicone Mats Mats for Hazardous Environments

We've seen your application. Call Us for application Assistance

(901) 452-4516
