Hazardous Area Drum Heaters

Hazardous Drum Heater Bulletin

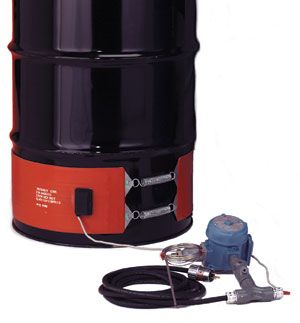

For Class 1, Division 2 hazard areas Extra wide 8" band for even heat Safely heat flammable liquids in steel drums. Quality silicone rubber and fiberglass construction is moisture-proof for durable long life. Simple spring and hook fastener for easy installation and removal. Thermostat assembly has 10' cord with NEMA 5 – 15 plug. High limit cut-off limits band temperature to 80% of "T" rating, the auto-ignition temperature of the flammable product, as referred to in National Electrical Code Article 501. Specify "T" rating when ordering (T3 or T4A). Operates on 120 volts AC. Hazardous heaters are also available in 240V and for 30 gallon steel drums. Product Highlights Class I Division 2 Groups A*, B, C, and D Class II Division 2 Groups F and G Exceptional 8" (203mm) coverage area Exceptional durability and flexibility Grounded serpentine wound heating element meets NEC 427.23 NEMA 7 temperature controller Designed for metal drums * only for drum heater without NEMA7 temperature controller

For T3 rated environments Gallon (Liter) Size Diameter in (mm) Total Wattage Part Number Price Select Voltage Add To Cart 120VAC 240VAC 30 (114) 18.6 (473) 1000 DHCX131000T3 DHCX231000T3 1789.80 120 Volts 240 Volts 55 (208) 22.3 (565) 1300 DHCX151300T3 DHCX251300T3 1833.50 120 Volts 240 Volts   For T4A rated environments Gallon (Liter) Size Diameter in (mm) Total Wattage Part Number Price Select Voltage Add To Cart 120VAC 240VAC 30 (114) 18.6 (473) 1000 DHCX131000T4A DHCX231000T4A 1789.80 120 Volts 240 Volts 55 (208) 22.3 (565) 1300 DHCX151300T4A DHCX251300T4A 1833.50 120 Volts 240 Volts
