Melt Pressure Gauges. Specifically designed for accuracy, stability and repeatability.

Economically priced

Armoloy coated diaphragm

CE rating

Pressure Indication

Provides reliable maintenance free, localized pressure indication. Designed for maximum durability. The small capillary tube filled with a special medium isolates the strain gage and electronics from potential thermal damage.

Digital Pressure Gauge w/ Alarm and Retransmitted 4-20 mA signal

Provides reliable maintenance free, localized pressure indication. Designed for maximum durability and combines the convenience of a traditinal gauge with the accuracy and reliability of a digital panel indicator. The small capillary tube filled with a special medium isolates the strain gage and electronics from potential thermal damage.

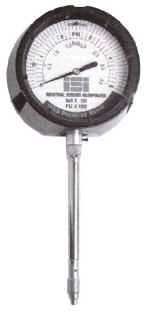

Style "0" Rigid:

The rigid stem makes installation fast and easy.

Style "1" Flexible:

  An 18 inch flexible capillary tube w/ a stainless steel armored jacket between the strain gage housing and the stem. These transducers are designed for applications requiring futher thermal isolation or where installation would be otherwise difficult or impractical.

Style "2" Flexible W/ TC:

  Only one mounting hole is required for installation. The thermocouple or optional RTD is protected from process hazards and can be replaced with out interrupting the pressure signal.
