MDI Solid State Contactors


The NEXT greatest thing! 2 Pole or 3 Pole.
This product is intended to replace mechanical contactors, perfect for fast switching larger loads. This product width is 2.84” (72 mm).

With this 3-pole switch ON occurs at the voltage zero cross and switch OFF occurs at the current zero cross. Apart from resistive and slightly inductive loads, the SSR is certified for motor switching with associated motor ratings. Varistors are integrated for output overvoltage protection. A green LED gives indication of control voltage presence. Fan operation is controlled for the versions which have an integrated fan.

Specifications are at a surrounding temperature of 25°C unless otherwise specified.
  • 3-pole AC switching solid state contactors
  • Product width 2.84" (72 mm)
  • Integrated varistor protection on output
  • UL, cUL Listing
  • 100 kA Short Circuit Current Rating according to UL 508
  • DIN or panel mount
  • RoHS compliant
  • Ratings:
    • Rated operational voltage:
      • 42-600 VAC -15% / +10% on max
    • Rated operational current per pole1:
      • AC-51 @ Ta=25°C: 37 AAC
      • AC-51 @ Ta=40°C: 30 AAC
      • AC-53a@ Ta=40°C: 14 AAC
    • Minimum operational current: 400 mA
    • Control voltages:
      • 20-275 VAC (24(-10%)-190 VDC)
    • Motor ratings:
      • 115 VAC: 1.5 kW / 2 HP
      • 230 VAC: 3.0 kW / 5 HP
      • 400 VAC: 5.5 kW / 10 HP
      • 480 VAC: 7.5 kW / 10 HP
      • 600 VAC: 11.0 kW / 15 HP
    • Blocking voltage: 1200 Vp
    • 6,600 A2s for l2t
    • Pick-up voltage: 20 VAC/DC
    • Drop-out voltage: 5 VAC/DC
    • Operating temperature:
      • -40°C to +80°C (-40°F to +176°F)
    • Weight: Approx. 850g
 3PSS60A30
3PSS60A30 (3 Pole 30 AMP)

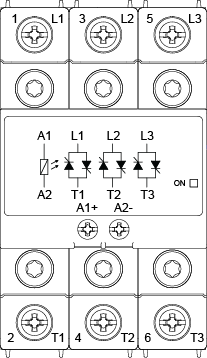

3PSS60A30 Terminal Layout
3PSS60A30 Terminal Layout
SSR's and Solid State Contactors.
Full Voltage 2 and 3 Pole Solid State Contactors
Model
Number 		Max Amps Max Volts Poles Price Add to Cart
2PS22.25 25 600 VAC 2 pole$149.00
2PS60.40 40 600 VAC 2 pole$149.00
2PS60.75 75 600 VAC 2 poleCall for Pricing
3PS60.30 30 600 VAC 3 pole$198.00
3PS60.65 65 600 VAC 3 poleCall for Pricing
Other Sizes Available Call us for a quote.

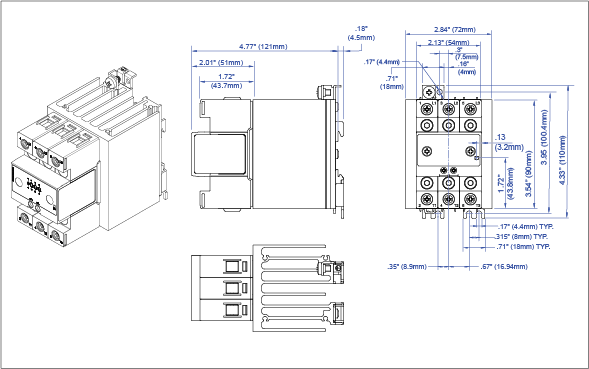

3PSS60A30 Dimension

3PSS60A30 Typical Dimension
