Micron Control Circuit Transformers
50 to 350 VA
W/Primary and Secondary Fuse Holders
FEATURES & BENEFITS!
Rated for MUlti Voltage INPUTS 208 to 460 V
Rated for Multi Voltage Outputs 24 or 120 VAC
UL CSA, CE, IEC Approvals
50/60 HZ
|
Machine Tool Transformers
Up to 350 VA |
| Model# |
Continous
VA Rating |
Primary
Volts |
Secondary
Volts |

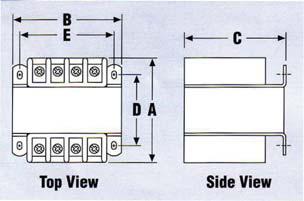

A*
Height |
B*
Width |
C*
Depth |
Price |
Buy |
| B050MBT713RK |
50 VA
| 208v, 230v, 460
| 115V 24V
| 3.25 |
3 |
3.93 |
$48.00 |
|
| B100MBT713RK |
100 VA
| 208v, 230v, 460v
| 115VAC 24VAC
| 3.62 |
3.75 |
4.55 |
$64.00 |
|
| B150MBT713RK |
150 VA
| 208v, 230v, 460v
| 115VAC 24VAC
| 4.37 |
3.75 |
4.55 |
$76.00 |
|
| B200MBT713RK |
200 VA
| 208v, 230v, 460v
| 115VAC 24VAC
| 4.5 |
4.5 |
5.18 |
$96.00 |
|
| B250MBT713RK |
250 VA
| 208v, 230v, 460v
| 115VAC 24VAC
| 5.25 |
4.5 |
5.18 |
$106.00 |
|
| B300MBT713RK |
300 VA
| 208v, 230v, 460v
| 115VAC 24VAC
| 5.12 |
5.25 |
6.12 |
$116.00 |
|
| B350MBT713RK |
350 VA
| 208v, 230v, 460v
| 115VAC 24VAC
| 5.37 |
5.25 |
6.12 |
$132.00 |
|
|
| |
