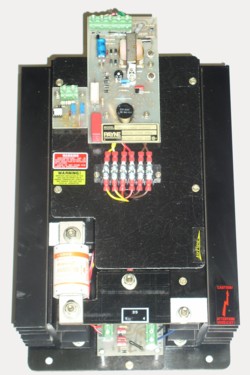

    Payne 18EZ
    Three Phase, Zero Fired SCR's


    3 Phase Zero Fired SCR
  • Stepless Voltage Control
  • All Solid State Contruction
  • 2 Millisecond Fuses
  • Transient Voltage Protection
  • Proprietary Heatsinks
  • Silent Switching
  • Infinitely Variable Voltage Control
    • SCR's: Model 18EZ Zero Fired SCR Controllers provide infinitely variable control of Three-phase AC Voltage loads Typcial applications include, resistive heating elements, Electric ovens or furnaces, Heat sealing, Drying Foam Cutting, Plastic Extruding and Molding, and all types Process Heating. If operated within the stated rating for current, voltage and temperature should run for millions and millions of cycles without failure and have no known MTBF or Life expectancy rating.
      Advantages:
    • Millions of Cycles
    • No electromechanical Noise
    • No moving parts
    • Quite
    • protection from chemicals and dust.
    • High resistance to shock and vibration.
    • No Arcing Contacts
      Dis-advantages:
    • Contact voltage drop "1 to 1.6 volts"
    • Heat sensitive 50° C
    • Heat producing
    • Tolerance to voltage spikes.
    Scroll to Applicable Voltage
    208 to 240 Volt PricesSpecifications
    380 to 480 Volt PricesSpecifications
    3 Phase 208/220/240 Volt Controllers!
    Amperage
    Options 1
    Options 2
    Milliamp Control Options
    Closed loop Only
    Qty

    Price


    3 Phase 380-480 Volt Controllers!
    Amperage
    Options 1
    Options 2
    Milliamp Control Options
    Closed loop Only
    Qty

    Price


    18EZ 240 Volt Specifications
    Model
    Number    		AmpsKVA @
    Rated Voltage    		HeightWidthDeapth
    18EZ-2-10i
    		10 4.011 95.37
    18EZ-2-20
    		20 8.0 11 9 5.37
    18EZ-2-30
    		30 12.0 12.5 10.25 6.37
    18EZ-2-50
    		50 20.0 13.25 11.25 6.5
    18EZ-2-80
    		80 33.0 13.25 11.25 6.5
    18EZ-2-120
    		120 49.0 14 14 9
    18EZ-2-150
    		150 62.0 21 21 9
    18EZ-2-250
    		250 103 27 17 9.62
    18EZ-2-350
    		350 144 27 21 11
    18EZ-2-450
    		450 185 27 21 11
    18EZ-2-600
    		600 247 33 21 11
    18EZ-2-1200
    		1200 494 57 33 12.5
    18EZ 480 Volt Specifications
    Model
    Number    		AmpsKVA @
    Rated Voltage    		HeightWidthDeapth
    18D-4-10 10 8.31195.37
    18D-4-20 20 16.6 11 9 5.37
    18D-4-30 30 25.0 12.5 9 6.37
    18D-4-50 50 41.0 13.25 11.25 6.5
    18D-4-80 80 66.0 13.25 11.25 6.5
    18D-4-120 120 99.0 14 14 9
    18D-4-150 150 124 21 21 9
    18D-4-250 250 206 27 17 9.62
    18D-4-350 350 288 27 21 11
    18D-4-450 450 375 27 21 11
    18D-4-600 600 500 33 21 11
    18D-4-1200 1200994 57 33 12.5

    We've seen your application. Call Us for application Assistance

    (901) 452-4516
