Commercial Heating @ Thermalinc.com

TH115
Open

TH110SPP

M600 Series

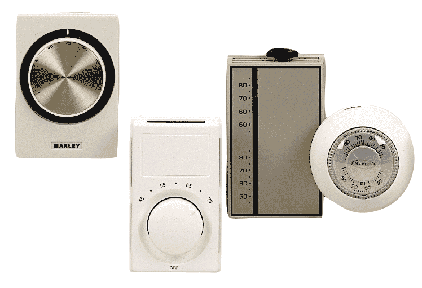

T200, M602, MHT4051, T87F

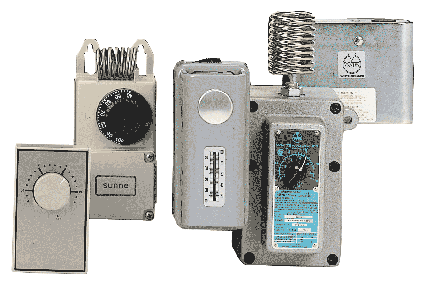

WR661, WT11A, WR80, WR80EP, LTR2 Relay

CATALOG NUMBER	SWITCH TYPE	AMPS	HOOK-UP	POSITIVE OFF	INDUCTIVE & RESISTIVE LOAD	TEMP RANGE (F)	Price	Add To Cart
DIGITAL ELECTRONIC PROGRAMABLE THERMOSTATS (WHITE)
TH115A120S	SPST	16.7A @ 120V w/stand-by	4-Wire	Stand-By Only	No	44-86	79.94
TH110SPP	SPST	20A @ 240V w/stand-by	4-Wire	Stand-By Only	No	44-86	73.94
TH110DPP	DPST	16.7A @ 240V	4-Wire	Yes	No	44-86	76.28
TH115-A-024T	Electro Mechanical	.5A @ 240V	3-Wire	NO	No	44-86	76.28

Line Voltage Thermostats
PRODUCT	DESCRIPTION	Price $US	Add To Cart
MS601W	Line voltage Snap action Thermostat, 22 amps, White, SPST, 45-75 °F (use for 120 volt control)	17.89
MS602W	Line voltage Snap action Thermostat, 22 amps, White, DPST, 45-75 °F (use for 240 / 208 volt control)	24.96
TF115	Line voltage Snap action Thermostat, 25 amps, White, DPDT, 40-110 °F (use for 120 / 208 / 240 / 277 VAC Control)	59.50

CATALOG NUMBER	SWITCH TYPE	TYPE	AMPS @ 120/240V	AMPS @ 277V	HEAT ANTICIPATOR	POSITIVE OFF	PILOT DUTY	TEMPERATURE RANGE (F)	WT. (lbs.)	Price	Add To Cart
LINE VOLTAGE THERMOSTATS (WHITE)
MS26 MD26	Snap Action	SPST DPST	22A	18A	No	No Yes	No	50-80	25	-	-
M611W M612W	Snap Action	SPST DPST	22A	18A	Yes	No Yes	125 VA	45-75	25	-	-
M600S M600MTP	Simult. 2 Stage	DPST	22A	18A	No	No	125 VA	45-75	25	-	-
T100 T200	Snap Action	SPST DPST	22A	18A	Yes	No Yes	125 VA	50-90	25	-	-
WR6551 WR661	Creep Action	SPST DPST	22A	18A	Yes	No Yes	No	40-85	15 17	-	-
SPECIALTY CONTROLS (BEIGE)
WT11A WT12A	Snap Action	SPST DPST*	25A	22A	No	No Yes	125 VA	40-100	2	-	-
WR80 WR80EP	Snap Action	SPST	22A	18A	No	No	125 VA	20-80 40-90	2 7	-	-
LOW VOLTAGE THERMOSTATS AND RELAYS
8095	SPST	0.15 to 1A @ 30V			No	NO	Yes	55-95	1	$18.00
WR1E30S T87F	Mercury	SPST	0.15 to 1A @ 30V			No	Yes	40-80 55-95	1	-	-
RT2	2-Stage Mercury		0.15 to 1A @ 30V			Ni	Yes	50-90	1	-	-
LTR1-120 LTR1-208 LTR1-240 LTR1-277	Silent Relays	All SPST	All 25A	All 22A	No	No				-	-
LTR2-240 LTR2-277	Dual Silent Relays	Two SPST Switches	All 25A	All 25A	No	No				-	-

CATALOG NUMBER

DESCRIPTION

M600THB

M600THW

Thermometer Faceplate For Beige M600 Series Thermostat

Thermometer Faceplate For White M600 Series Thermostat

TC1

Clear Plastic Lockable Thermostat Guard. Dimensions: 7"L x 4.28"H x 2.74"D.

*Both Poles Cycle.

BACK TO THE TOP

We've Probably already seen your application. Call Us for application Assistance!
(901) 452-4516

This page was designed and is Maintained by Richard Jordan
If You Have Any Questions or Comments E-mail me at My Home

THERMOSTATS AND CONTROLS
DIGITAL THERMOSTATS AND CONTROLS
