E Shop : Comfort Heating : Quartz Infrared Heaters

Quartz Lamp Heaters
Solarbeam Universal "All-Weather" Quartz Lamp Infared Heaters Aitken Lamp heater

Minimum mounting height-10 feet. Where ceiling are under 10 feet... or other reasons seem to dictated less than a 10-foot mounting height, call us for advise. Do not install closer than 24 inches to a vertical surface. Can be stem mounted to any supporting surface. For supply connections use wire suitable for at least 75 C (167 F).

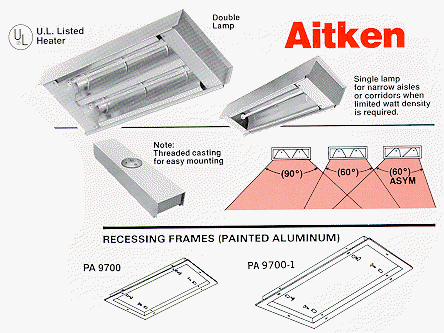

Aitken Lamp dimensional Drawing

Installation:
Cut out dimensions are: 12 1/6" x 28" for Part #PA9700
                                      12 1/2" x 37" for Part #PA97000-1
Mount recessing frame in ceiling (6) holes are provided in frame.
Holes munt be drilled in heat housing.

NOTE: USE ONLY IN FIREPROOF CONSTRUCTION USE ONLY WHERE LOCAL CODES OR INSPECTION ALLOW. MOUNTING OF HEATER IN THIS MANNER VOIDS U.L. LISTING. MINIMUM CAVITY DEPTH--12"

Model No. Lamps Decription Voltage Reflector Add to Cart
QH169 1
$233.00
QH10 1
$264.00
QH32 2
$316.80
QHL169 1
$248.00
QHL259 2
$272.00
QHL10 2
$261.00
QHL32 2
$324.00
QHL50 2
$371.00
