Forced-air Heaters

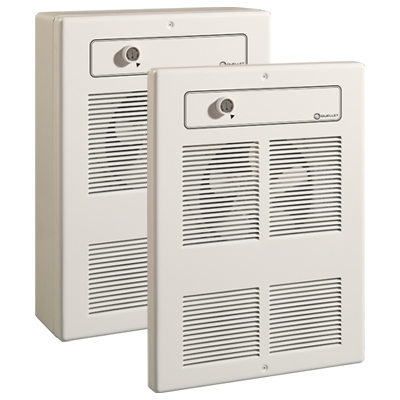

WCI (Commercial wall heater)

Click Here for Architectural View (WAI) WCI (Commercial wall heater)

This is a High Powered Heater
  for Tough Applications!
Never leaves you out in the cold

The WCI wall heater is designed for residential, commercial and industrial use. It provides a burst of heat in areas affected by cold drafts or wide temperature swings, such as garages, vestibules, stairwells, etc.

Powered by a factory-lubricated totally enclosed motor, the fan draws air from the ceiling and blows warm air downward to create air circulation.

Select the Color of your Choice to Match any Room!



Features

Color
White / almond / Metallic Silver / Beige-Gray / Charcoal Steel / Bronze
Finish Epoxy/polyester powder paint.
Voltage 208, 240/208

Construction
18-gauge steel grill.
Bottom air outlet.
High-limit temperature control with automatic reset.Safety
Heating element Durable tubular heating element with fins.

Fan
Closed, factory-lubricated motor.
160 cfm fan
We are the Only Heater
Manufacture to publish Sound Levels
  • Quiet (55 dBA),
    Fan over-ride purges heater of residual heat.
    		•

    Control
    Built-in thermostat included, 0-50 °C (32-120°F).
    Combination with knob or tamper-proof (hidden) Optional.

    Installation
    Standard 60 °C wiring.
    Adaptor for surface mounting available.
    Warranty 1-year warranty against any defects.
    Shipping This Item is not always in stock.
    Colors other than White are always non-stock items.
    Click on the Add button for expected shipping times.
    For faster shipping wall heaters look at our ---VFK Wall Heaters


          Technical Drawing       Color Selection Chart

    Starting At

    $245.00

    Dimensions for Recessed mounting
    14 13/32 x 19 27/32 in inches
    Catalog# Color Volts Watts Wgt. Price $ Add To Cart
    WCI-1500V
    		240/208 1500/1125 20 $245.00
    WCI-2000V
    		240/208 2000/1500 20 $245.00
    WCI-3000V
    		240/208 3000/2250 20 $270.00
    WCI-4000V
    		240/208 4000/3000 20 $270.00
    WCI-4800V
    		240/208 4800/4000 20 $299.00

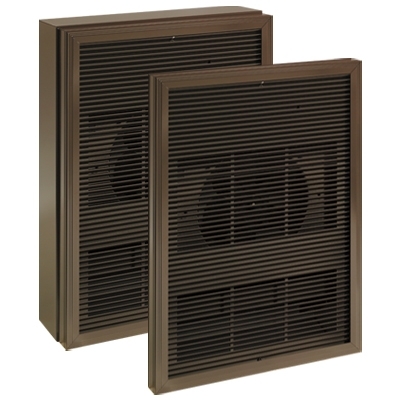

    Architectural Series     Allow 3 Weeks for delivery
    WAI-3000V
    		240/208 3000/2250 24 $306.00.00
    WAI-4000V
    		240/208 4000/3000 24 $306.00
    WAI-4800V
    		240/208 4800/4000 24 $344.00
    Call us for Quantity Discounts.
    ACCESSORIES (OPTIONAL)
    Catalog# Description Your Cost Add To Cart
    WCI-BS1 Surface Mounting Box $36.00
    WCI-R2 24 Volt Relay transfomer for remote mount Low Voltage Thermostat (Special Order Please allow 3 weeks) $65.00
    WCI-D Factory Installed Disconnect $24.00
