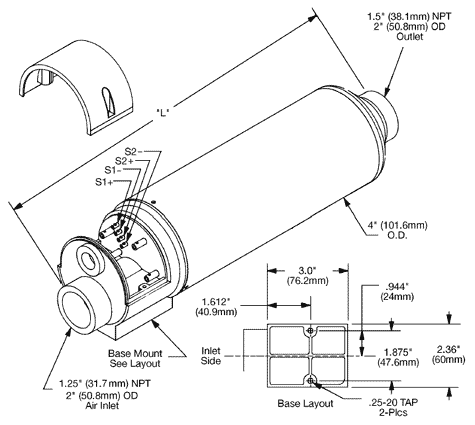

SureHeat™ 36,000 - Specifications and Accessories Specifications
Dual Temperature Limit Control Board
Command Signal SCR/SSR NOTE: SENSOR 1 IS ON HEATER VOLTAGE!! |
||||||
| Part Number* | Max. Watts | Max. Volts | Phase | Maximum Amp Draw | Heater Length "L" | Replacement Element Part Number |
| 072768 | 6,000 | 240 | 1 | 25.0 | 12" (31cm) | 072795 |
| 072769 | 6,000 | 240 | 3 | 14.5 | 12" (31cm) | 072796 |
| 072771 | 6,000 | 380 | 3 | 9.1 | 12" (31cm) | 072797 |
| 072772 | 6,000 | 480 | 3 | 7.2 | 12" (31cm) | 072798 |
| 072773 | 10,000 | 240 | 1 | 41.7 | 12" (31cm) | 072799 |
| 072774 | 10,000 | 240 | 3 | 24.1 | 12" (31cm) | 072801 |
| 072775 | 10,000 | 380 | 3 | 15.2 | 12" (31cm) | 072802 |
| 072776 | 10,000 | 480 | 3 | 12.0 | 12" (31cm) | 072803 |
| 072777 | 18,000 | 380 | 3 | 27.4 | 16" (41cm) | 072804 |
| 072778 | 18,000 | 480 | 3 | 21.7 | 16" (41cm) | 072805 |
| 072779 | 36,000 | 380 | 3 | 54.8 | 16" (41cm) | 072806 |
| 072781 | 36,000 | 480 | 3 | 43.4 | 16" (41cm) | 072807 |
* includes housing assembly, element, and over-temperature board. | ||||||
Accessories | ||||||
| Part Number | Description | |||||
| 072808 | Replacement over-temperature board | |||||
| 073272 | Replacement 12" housing assembly (includes stainless nozzle/tube and base mount) | |||||
| 073273 | Replacement 16" housing assembly (includes stainless nozzle/tube and base mount) | |||||
| 065832 | Thermocouple port adaptor (does not include thermocouple.) | |||||
| 039272 | "K" thermocouple probe | |||||
