Features

• Air/inert gas temperatures to 1400°F (760°C)
• Revolutionary heater burnout protection circuitry
• Plug-in replaceable elements
• Maximum air pressure 10 PSI
• Up to 36kW in a compact 16" size
• Low pressure drop across heater (suitable for use with blower)

The new OSRAM SYLVANIA SureHeat 36,000 provides the power of a high temperature (1400°F / 760°C), high volume, multi-element heater in a surprisingly compact package. The SureHeat 36,000 combines our time proven Serpentine Element design with our new integrated control technology, producing a flexible, reliable heater, which is capable of easily and safely interfacing with just about any temperature controller, PLC, or power controller. At the heart of this revolutionary new technology is our new sensing circuitry, which directly measures the heater’s element temperature. Due to this new design, full power can be applied to the heater without any airflow, allowing instantaneous heat response to intermittent air or product flow.

Heater Selection

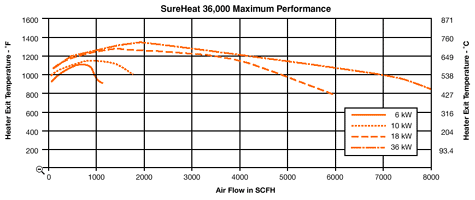

To determine the proper size heater, plot a point, which defines your required air temperature and flow. The nearest curve to the right and above this point represents the proper heater selection.

All temperature measurements were created using an exposed junction, 1/16" diameter "K" thermocouple.

SureHeat™ 36,000 Operating Manual (PDF)

Specifications and Accessories
