E-Shop : Drum Heaters : Drum Insulator

FGDI Insulation Blanket for Drums!

  • Compliments any 55 gallon (208 liter) drum heater

  • Full-coverage

  • Reduces heat loss

  • Perfect for Metal and Poly Tanks

  • Execellent durability and flexibility

  • Can Operate with the Heater On!

  • Specifications

    • Silicone impregnated cloth facing and liner
    • 1" (25mm) fiberglass insulation
    • Closure: Hook and loop fastener like VELCRO®
    • 500°F (260°C) maximum exposure temperature on heating surface
    • Designed for use indoors

    FGDI Drum Insulator Specification Sheet

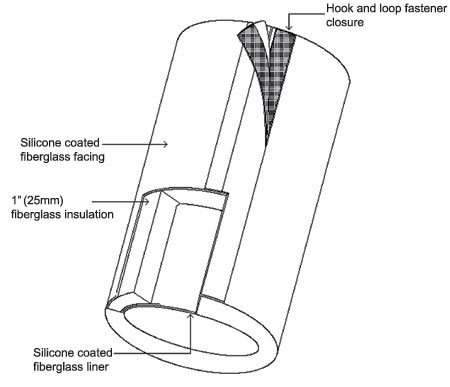

    FGDI Drum Insulator

  • Click For Detail!
    New Product
    Catalog# Drum Size Diameter Weight Price $ Add To Cart
    FGDI Drum Insulator!
    FGDI-55 55 22-1/2 15 412.00
    FGDI Accessories!
    FGDC-55 Drum Cover 22-1/2 5 89.00
    FGDH-STRIP 6 Inch Expansion Section for 24.2 Diameter tanks 24.2 5 89.00

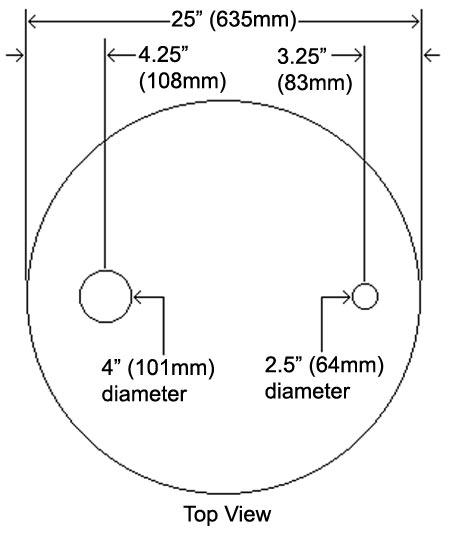

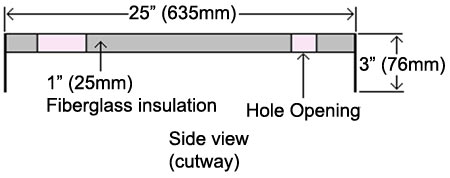

    Optional Insulated Drum Cover

    Click to Enlarge

    Click to Enlarge

    Heat Up Time for Drum Heaters (Enter Wattage used!)

    Note: ** Ambient Conditions assumed = start up temperatures!
    Drum Size
    Temp Rise Required
    Liquid In TanK
    Enter Wattage Applied
    Heat-up Time Un-Insulated
    Heat-up Time Insulated

    Call us for Quantity Discounts.

    We've seen your application. Call Us for application Assistance
