Quartz Lamp Heaters
Solarbeam Universal "All-Weather" Quartz Lamp Infared Heaters Aitken Lamp heater

Minimum mounting height-10 feet. Where ceiling are under 10 feet... or other reasons seem to dictated less than a 10-foot mounting height, call us for advise. Do not install closer than 24 inches to a vertical surface. Can be stem mounted to any supporting surface. For supply connections use wire suitable for at least 75 C (167 F).

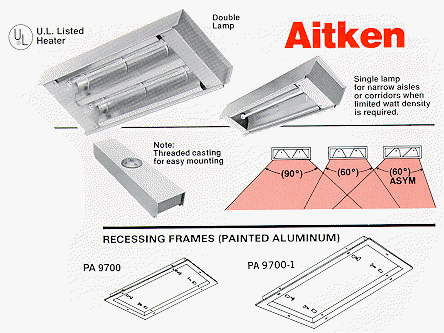

Aitken Lamp dimensional Drawing

Installation:
Cut out dimensions are: 12 1/6" x 28" for Part #PA9700
                                      12 1/2" x 37" for Part #PA97000-1
Mount recessing frame in ceiling (6) holes are provided in frame.
Holes munt be drilled in heat housing.

NOTE: USE ONLY IN FIREPROOF CONSTRUCTION USE ONLY WHERE LOCAL CODES OR INSPECTION ALLOW. MOUNTING OF HEATER IN THIS MANNER VOIDS U.L. LISTING. MINIMUM CAVITY DEPTH--12"

Model DIMENSIONS Reflector No. Lamps Watts Volts Amps Shipping Wt.
Single Lamp Fixtures
 Butt Socket                    Pigtail
OH169 OHL169 3 3/8 x 25 1/2 x5 3/4 90° 1 1600 208, 240, 277 v Table Shipping Wt.
NA OHL259 3 3/8 x 25 1/2 x5 3/4 90° 1 2500 480 5.21 11 lbs.
Double Lamp Fixtures
      Butt Socket             Pigtail
OH109 OH109 3 3/8 x 25 1/2 x5 3/4 90° 2 1000 120 8.3 10 lbs.
OH106 OHL106 3 3/8 x 25 1/2 x5 3/4 60° 2 1000 120 8.3 10 lbs.
OH106A OHL106A 3 3/8 x 25 1/2 x5 3/4 60°A 2 1000 120 8.3 10 lbs.
OH329** OHL329** 3 3/8 x 25 1/2 x5 3/4 90° 2 3200 Specify
208, 277
OR 240V		 16.4 @ 208V
13.4 @ 240V
11.6 @ 277 v		 14 lbs.
OH326** OHL326** 3 3/8 x 25 1/2 x5 3/4 60° 2 3200 14 lbs.
OH326A** OHLOH326A** 3 3/8 x 25 1/2 x5 3/4 60°A 2 3200 14 lbs.
NA OHL509 3 3/8 x 25 1/2 x5 3/4 90° 2 5000 480 10.4 17 lbs.
NA OHL506 3 3/8 x 25 1/2 x5 3/4 60° 2 5000 480 10.4 17 lbs.
NA OHL506A 3 3/8 x 25 1/2 x5 3/4 60°A 2 5000 480 10.4 17 lbs.
*The 3200 watt units are available at 208/240 or 277 please specify.
**Red Lamps
