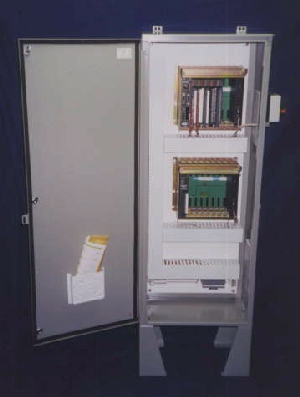

Allen Bradley PLC 5 Mounted in a NEMA 12 Enclosure also included (4) four additional Panels. This system operates the Sluice Gates at FedEX Memphis Fuel Depot.

We Designed the System

Designed and Built the Enclosures

Wrote and Programed The PLC 5

And Provided Start-up Support for the System

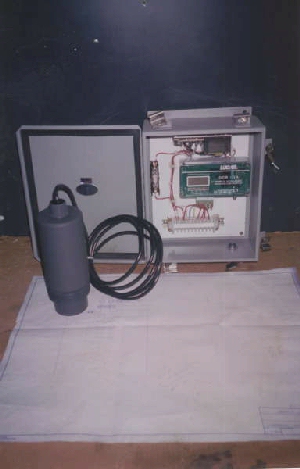

Paint Level Control System. We provided this system for Sharp Manufacturing. Ultra-Sonic Sensors were placed over a wier to monitor both level and Flow.

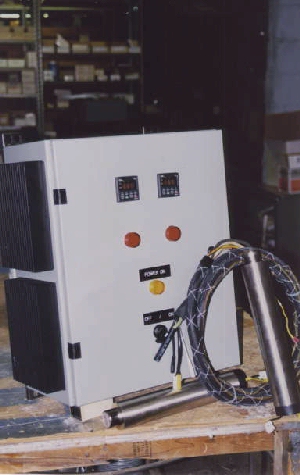

Air Heater Power Controls. This System Provides Extremly even heat from Sylvania Emissive air heaters. The heaters are controlled by Fuji Temperature Controllers providing 4-20 mA signals to the SCR power Controls. The SCR controllers also take a signal from the color of the elements for early shut-down due to loss of air.

This System was designed to melt Soder.

Maintaining 800° air

Three Shifts service 365 days a year.

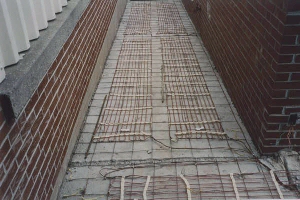

Snow Removal System: This System protects the entrance ramp at "Maybelline" from Ice and Snow. The Controls were designed to operate the heaters when:

Temperature is below 40° F

Moisture is present.

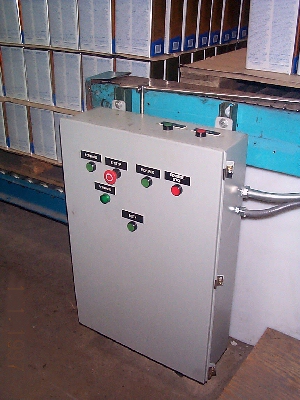

Conveyor Loading System:Operates the conveyors automaticly to Advance and Raise Palets of Cans to be loaded onto the conveyor.

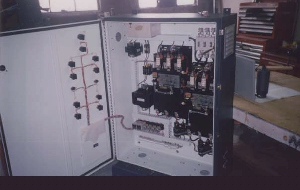

Temperature Contol Panel Designed and Built for a Metal Treating Oven.

Controls Ramp Temp Up and Down and hold a soak time.

SCR Controllers provide Smooth control

Note the system has backup contactors, Disconnect and High limit cut-out.
