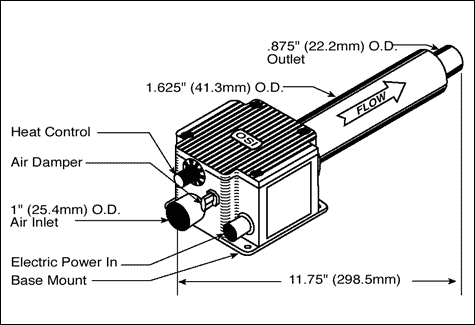

G-Temp® Heaters - Specifications and Accessories Specifications
|
|||||
| Part Number | Max. Watts | Max. Volts | Max. Amps | Hz Rating | Replacement Element Part Number |
| 066136 | 1500 | 120 | 13 | 60 | 066137 |
| 070282 | 3000 | 230 | 15 | 50 | 065335 |
| 065253 | 3000 | 230 | 15 | 60 | 065335 |
Accessories | |||||
| Part Number | Description | ||||
| 065415 | Stainless Steel End Flare 2.75" x .06" (70mm x 1.6mm) | ||||
| 066265 | 1"(25.4mm) ID Plastic Hose to connect heater to blower (Sold by the meter) | ||||
| 066264 | Hose Cuffs (Sold in pairs) (for use with 066265) | ||||
| 066262 | 1" (25.4mm) Tee used to supply two heaters from one blower | ||||
| 065507 | Regenerative Blower 27.0 SCFM Single Phase 115V or 230V | ||||
