Portable Infrared Heaters
Return to Comfort Heat Index
Heat Loss Calculations

We Stock Aitken and Fostoria Heating Elements
AITKEN INFRARED HEATERS are designed for Industrial on the line people heaters. The Infared energy passes through the air and heats the object or person below. Spot Heating of work stations without heating the entire warehouse.

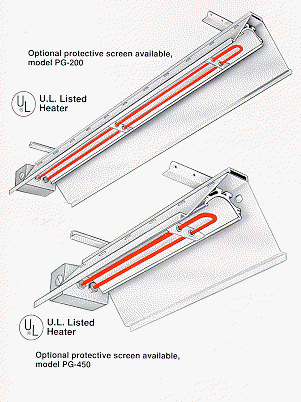

Overhead Infrared Heaters HEAVY DUTY, METAL SHEATH, INDUSTRIAL
2, 4.5 & 13.5KW
Overhead Heaters
Easily Installed
Our OH series heaters can be suspended just like fluoresent lighting fiztures to focus heat where desired. They can be used to heat one particular area or in a group to heat an entire building.
Features Include:
2 KW AND 4.5 KW CAPACITY
The 2000 watt model delivers about 6000 BTU'S of radiant heat. The 4500 watt model delivers about 15,000 BTU's of radiant heat.

TEMPERATURE CONTROL
It can be manually operated off a disconnect switch or automatically controlled with an Aitken Control assembly.(Option-See Controllers below.)

NEARLY INDESTRUCTIBLE
Made of heavy gauge aluminum with impact resistant heating elements.

OPERATES IN MANY POSITIONS
Designed for overhead installations but can be used in many positions.

EASY INSTALLATION
Mounting brackets are provided for hanging unit.

WEATHERPROOF
Can be operated indoors or out, or hosed off to clean, when not energized.

MINIMUM MOUNTING HEIGHT
10 Feet. Where ceilings are under 10 feet-- or other reasons seem to dictate less than 10-foot mounting height -- call us for advice.



Order Here
Model WATTS VOLTS AMPS PHASE Price Add Heater
to Cart		 Replacement
Element		 Element
Price		 Add Element
to Cart
OH2028 2,000 208 9.6 1 291.95 $
HE20208 105.00 $
OH202 2,000 240 8.3 1 291.95 $
HE20240 105.00 $
OH204 2,000 480 4.2 1 291.95 $
HE20480 105.00 $
OH4528 4,500 208 21.6 1 379.45 $
HE45208 147.50 $
OH452 4,500 240 18.8 1 379.45 $
HE45240 147.50 $
OH454 4,500 480 9.4 1 379.45 $
HE45480 147.50
OH628 6,000 208 16.7 3 576.80 $
HE20208 105.00
OH623 6,000 240 14.5 3 576.80 $
HE20240 105.00
OH643 6,000 480 7.2 3 576.80 $
HE20480 105.00
OH13528 13,500 208 37.5 3 928.75 $
HE45208 147.50 $
OH135231 13,500 240 32.5 3 928.75 $
HE45240 147.50
OH135431 13,500 480 16.3 3 928.75 $
HE45480 147.50
Higher Voltages Available!
